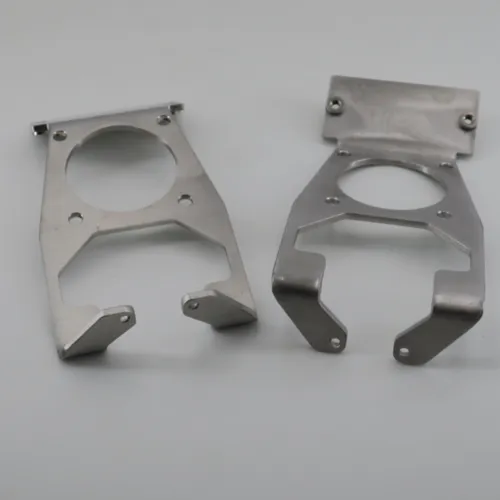

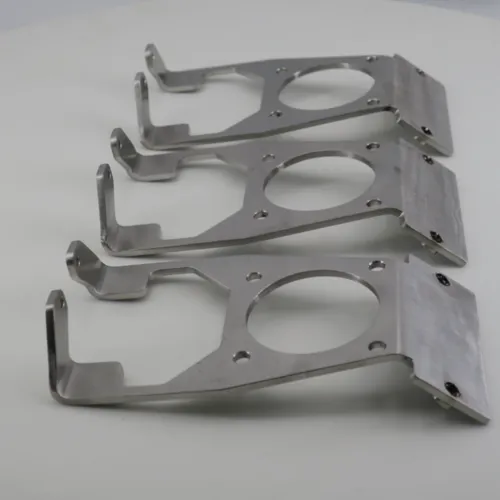

Cable Management Bracket for Dental Equipment

Material:AISI 304

Finish:Cleaned and deburred

The AISI 304 stainless steel cable and tubing management bracket is a high-performance solution for routing hoses, wires, and fluid lines in regulated, hygiene-critical settings. It’s engineered for industries that demand both cleanliness and structural durability—making it ideal for dental units, medical devices, laboratories, cleanroom environments, and industrial automation systems.

At Rollyu Precision, we specialize in end-to-end sheet metal fabrication services, including:

  • Laser cutting
  • CNC bending
  • TIG/MIG welding
  • Surface treatment (passivation, polishing, electropolishing)
  • Final assembly and custom packaging

All components are produced in-house under ISO 9001:2015 and ISO 13485:2016 certified quality systems, ensuring full traceability, consistent accuracy, and compliance with international standards—particularly for medical and healthcare markets in the UK, Germany, USA, Canada, and Israel, and more.

Whether you need customized brackets or custom-designed sheet metal components, we deliver precision, reliability, and responsive service at scale.

Partner with Rollyu Precision today—your trusted sheet metal expert for high-standard cable and tubing solutions.

Contact us now to request a quote or technical consultation

Our AISI 304 stainless steel cable and tubing management brackets are manufactured through a precise process: starting with material selection, followed by laser cutting or CNC punching, CNC bending, deburring, and surface finishing such as passivation or bead blasting. Each part undergoes strict quality checks with CMMs and gauges. We also offer optional assembly with PEM inserts or laser marking—ideal for medical, dental, and industrial equipment applications.

Material Selection Material: AISI 304 Stainless Steel (annealed or cold-rolled)
Chosen for its corrosion resistance, hygiene compatibility, and formability—essential for sterile and harsh environments.

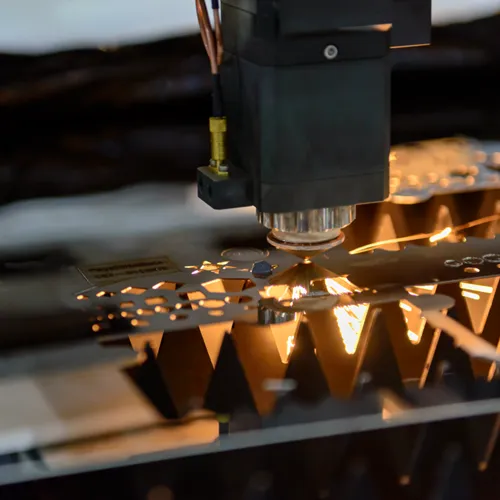

Laser Cutting or Punching Flat stainless steel sheets are laser-cut or CNC punched to create precise profiles.
Tolerances typically held within ±0.1 mm.
Clean, burr-free edges ensure safe cable/tube routing in clinical or equipment settings.
CNC Bending/Forming Cut blanks are transferred to a CNC press brake or custom tooling for bending.
Multiple-angle bends form tabs, mounting flanges, or channels for secure tubing management.
Deburring & Surface Preparation Parts undergo vibratory deburring, manual sanding, or electropolishing to remove sharp edges and enhance safety and appearance.
Surface roughness (Ra) can be controlled as per industry requirements.
Finishing Common finishes include:
Electropolishing for medical-grade smoothness
Passivation to improve corrosion resistance
Glass bead blasting or brushed finish for aesthetic and functional surfaces
Quality Inspection Dimensional inspection using CMM, height gauges, and radius checkers
Surface verification and edge radius checks for compliance with ISO 13485 standards (if required)
Optional Assembly or Labeling Laser marking available for part IDs, batch numbers, or directional indicators
Optional hardware installation (e.g., PEM nuts, studs)

This AISI 304 stainless steel bracket is built to manage and support cables, tubing, and fluid lines in high-performance environments. Its corrosion-resistant, easy-to-clean design makes it well-suited for dental equipment, medical carts, cleanroom systems, laboratory setups, and automated equipment.



Mounted on walls, equipment frames, or enclosures, the bracket keeps lines neatly organized and out of the way. It helps reduce wear, prevent tangling, and maintain a cleaner, safer workspace—especially in applications where hygiene and reliability are critical.

Industry Application Examples
Medical Devices Secure tubing in surgical robots, infusion pumps, imaging systems, and sterilization units.
Dental Equipment Route air, water, and suction lines in dental chairs and handpiece delivery systems.
Laboratory & Life Sciences Organize fluid lines and power cables in lab automation, analyzers, and cleanroom instruments.
Rehabilitation & Physical Therapy Mount and guide sensor wires, pneumatic tubes, and fluid hoses on therapy devices.
OEM Medical Equipment Integrated into custom builds for efficient cable and fluid routing with full ISO13485 compliance.
Industrial Automation Manage sensor cables, pneumatic lines, and control wiring on robotic arms and factory systems.
Food & Beverage Processing Enable sanitary routing of tubes and electrical cords in washdown-grade environments.
Pharmaceutical Production Hold process tubing, valves, and sensors in cleanroom bioprocessing or single-use systems.
Emergency & Mobile Units Used in ambulances, field hospitals, or fire trucks for safe, compact cable and hose control.
Marine & Offshore Withstand harsh, corrosive environments in labs, kitchens, or medical bays aboard ships.

Part number: RY-H0068

Materials Available: Stainless Steel, Steel, Aluminum, Brass, Plastic, etc.

Tolerance: ±0.05mm

Material Certificates: Available

MOQ:1 piece

Drawing Accepted: PRO/E, Auto CAD, SolidWorks, UG, CAD / CAM / CAE, PDF

RoHS/REACH Report: Available

Certificate: ISO9001:2015, ISO13485:2016

Non-disclosure agreement: Strictly sign a confidentiality agreement NDA to give you peace of mind
